UF-6B Ultrafiltration Water Purifier
UF-6B Ultrafiltration Water Purifier
Model: UF-6B — Direct-Drinking Six-Stage Ultrafiltration — OEM/ODM Available
UF-6B Direct-Drinking Six-Stage Ultrafiltration Water Purifier
1. Product Overview
Six-stage multi-layer filtration deeply removes odor, discoloration and harmful substances while retaining essential minerals and adding an energy boost — fresh, direct drinking water, no electricity required, suitable for municipal tap water. Multi-layer protection for healthier everyday hydration.
2. Six-Stage Filtration — Multi-Layer Protection, Fresh Direct Drinking
| Stage | Filter | Function | Replace Cycle |
|---|---|---|---|
| Stage 1 | PP Cotton Filter | Filters sediment, rust and fine suspended particles down to 1 micron. | 5–6 months |
| Stage 2 | UDF Granular Carbon | Absorbs residual chlorine, odor and discoloration to improve water quality. | 5–6 months |
| Stage 3 | Compressed Carbon Filter (CTO) | Further removes residual chlorine, organic matter and tiny particles. | 5–6 months |
| Stage 4 | Hollow-Fiber Ultrafiltration Membrane | Blocks fine impurities, colloids and bacteria while retaining healthy minerals. | 12–18 months |
| Stage 5 | T33 Post-Carbon Filter | Polishes taste and removes any remaining odor or residual chlorine. | 8–12 months |
| Stage 6 | Energy / Alkaline Filter | Adjusts pH and adds beneficial minerals, delivering fresher, better-tasting water. | 6–10 months |
3. Ultrafiltration Membrane Technology
The hollow-fiber ultrafiltration membrane's fine pore size blocks fine impurities, colloids, mud and rust while retaining healthy water molecules, minerals and trace elements — precise filtration without removing the good stuff.
4. Product Appearance & Installation

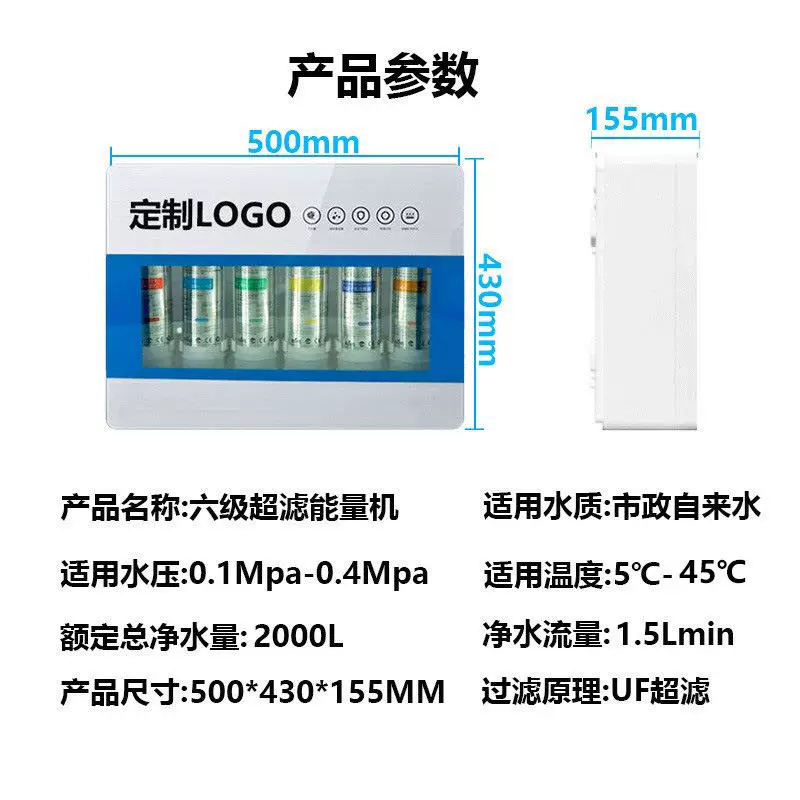

5. Product Parameters
6. Product Specifications
| Parameter | UF-6B |
|---|---|
| Product | Direct-Drinking Water Purifier |
| Model | UF-6B |
| Filtration Technology | Ultrafiltration (UF) |
| Filter Stages | 6-Stage Filtration |
| Power | No electricity required |
| Working Pressure | 0.1–0.4 MPa |
| Water Temperature | 5–45 ℃ |
| Rated Total Water Output | 2000 L |
| Water Flow | 1.5 L/min |
| Water Source | Municipal tap water |
| Installation Location | Countertop / Under-sink / Wall-mounted |
| Installation Method | Connect via tee valve and faucet |
| Hygiene License | Certified (Water-related hygiene approval) |
| Product Size (L × W × H) | 500 × 430 × 155 mm |
Note: Manual measurement may vary; the specification table above is final and takes precedence over any figures shown in reference product images.

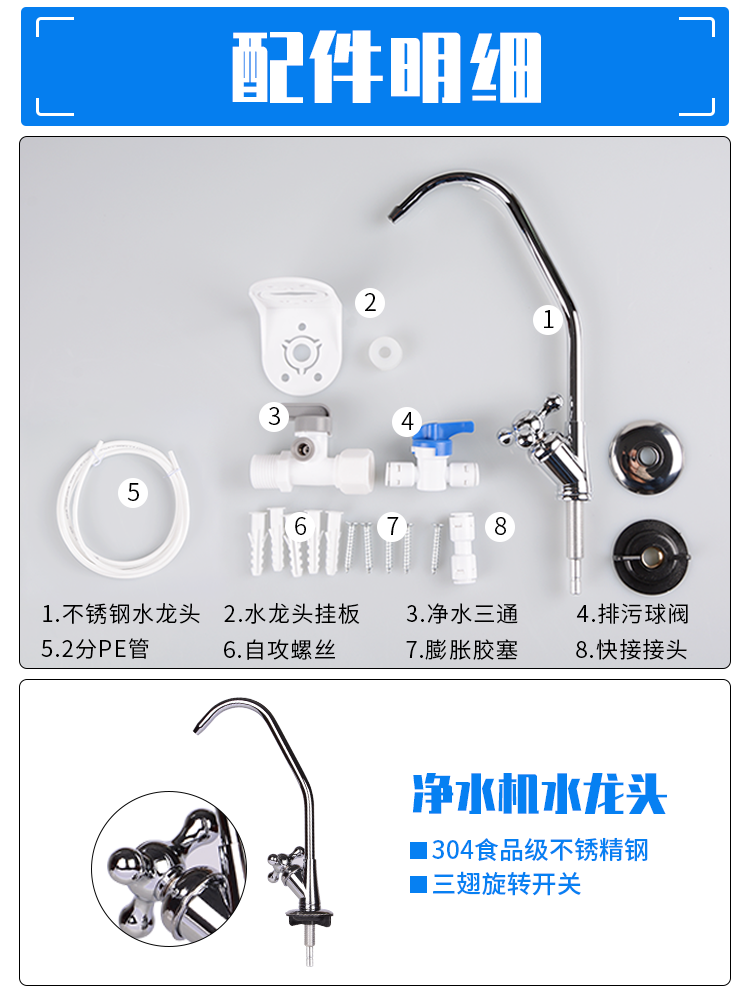

7. Accessories & Packaging
Standard accessories include: stainless-steel faucet, faucet mounting plate, water tee valve, drain ball valve, 2-minute PE tubing, self-tapping screws, expansion plugs and quick-connect fittings.
8. Key Selling Points
6-Stage Deep Filtration
No Electricity Needed
Alkaline Energy Boost
Certified Hygiene License
Retains Essential Minerals
Wide Temp. Range 5–45℃
Contact Us
Huizhou Qiteng Environmental Technology Co., Ltd.
Address: Huiyang District, Huizhou City, Guangdong, China
Contact: Willow Yang
Tel / WhatsApp: +86 189 4835 3117
Email: [email protected]
Website: www.qitengoem.com
Supporting OEM/ODM Customized Production — International Inquiries Welcome
The above is for reference only; actual product and official specifications shall prevail.
